Specialized circuit boards engineered for superior performance in RF, microwave, and high-speed digital applications. Our High Frequency PCBs deliver exceptional signal integrity, minimal loss, and precise impedance control for frequencies up to 100+ GHz.
Advanced characteristics for superior high-frequency performance
Specialized substrates with low dielectric loss (Df < 0.004) ensure minimal signal attenuation at microwave frequencies.
Tight impedance tolerance (±5% or better) maintained through advanced manufacturing and material consistency.
Stable dielectric constant across wide frequency ranges and temperature variations for consistent performance.
Minimized signal distortion, crosstalk, and electromagnetic interference through optimized layer stackups and routing.

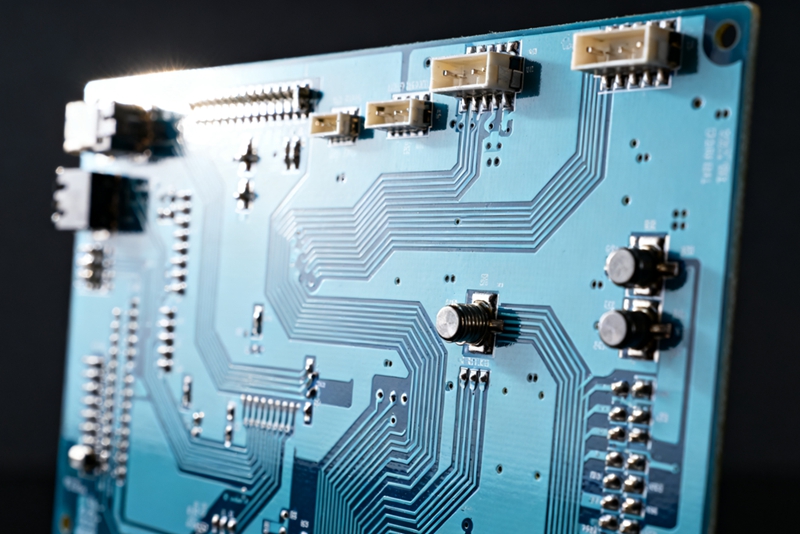

Advanced technical parameters for high-frequency applications
Our High Frequency PCBs utilize specialized materials and precision manufacturing to deliver optimal performance in demanding RF and microwave applications.
Critical applications requiring superior high-frequency performance
Massive MIMO antennas, base stations, and network equipment for next-generation wireless communication.
Automotive radar, military surveillance, and weather radar systems operating at microwave frequencies.
Wi-Fi 6/6E, Bluetooth, IoT devices, and wireless modules requiring stable RF performance.
Server backplanes, network switches, and computing systems with multi-gigabit data rates.
MRI systems, medical diagnostics, and therapeutic equipment operating at RF frequencies.
Satellite communications, avionics, and space systems requiring reliable RF performance.
Selecting the right material for your high-frequency application
| Material Property | Rogers RO4000 | Taconic TLY | Arlon 25N | Standard FR-4 |
|---|---|---|---|---|
| Dielectric Constant | 3.38 - 6.15 | 2.17 - 2.33 | 3.38 - 3.50 | 4.2 - 4.8 |
| Dissipation Factor | 0.0027 - 0.0037 | 0.0009 - 0.0012 | 0.0025 - 0.0035 | 0.015 - 0.025 |
| Frequency Range | Up to 77 GHz | Up to 110 GHz | Up to 40 GHz | Up to 2-3 GHz |
| Thermal Stability | Excellent | Very Good | Excellent | Good |
| Cost Factor | Medium-High | High | Medium | Low |
Our RF engineering team specializes in high-frequency design and can help you optimize your circuit for maximum performance. Contact us for expert consultation and material selection guidance.
