In the modern era of electronics, miniaturization is paramount. As consumer expectations shift towards smaller, lighter, and more capable electronics, the need for highly efficient printed circuit board (PCB) layouts has grown exponentially. This relentless drive for space efficiency is exactly where high-density interconnect (HDI) boards and blind via technology come into play. By strategically connecting the outer layers of a board to its internal layers without drilling completely through the substrate, blind vias free up crucial routing space. This allows electrical engineers to pack significantly more functionality, components, and traces into a tightly constrained footprint. Understanding exactly why smart devices require an HDI PCB stackup for compact designs is the foundational step toward fully appreciating the raw layout power that blind via technology can unleash.

What is Blind Via Technology?

A blind via is a specialized type of interconnection used in multi-layer printed circuit boards. It connects the top or bottom outer layer of the PCB to one or more immediately adjacent inner layers but deliberately stops short of penetrating the entire thickness of the board. Because it is only visible and accessible from one side of the board—referred to as the “blind” side—it leaves the opposite exterior surface completely intact and untouched. This pristine area on the opposite side can subsequently be used for placing additional surface mount technology (SMT) components, or it can be utilized for routing more complex traces, dramatically increasing the board’s overall component and routing density.

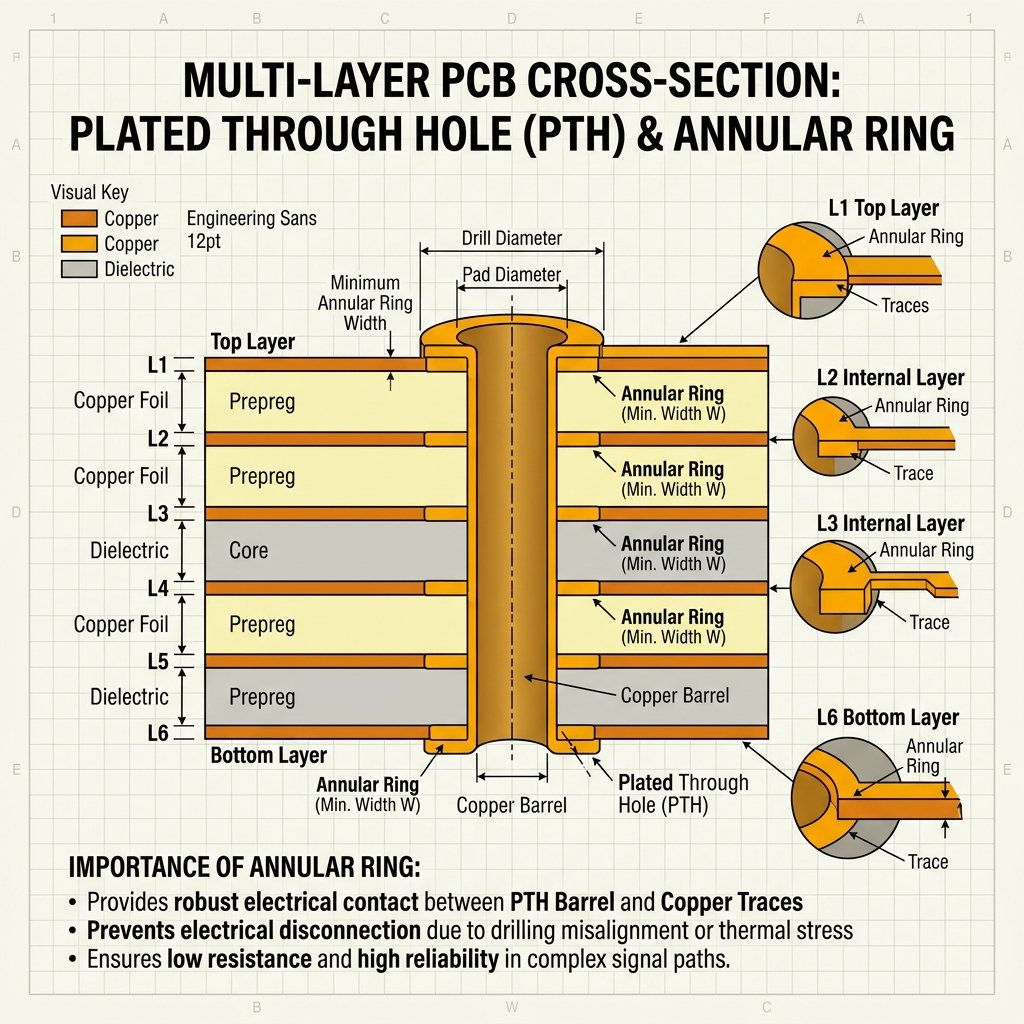

By stark contrast, a standard through-hole via penetrates the entire circuit board from top to bottom. While simpler to manufacture, a through-hole via aggressively consumes valuable real estate on every single internal and external layer, even on those layers where an electrical connection is not actively required. Implementing blind via technology is especially critical when dealing with advanced, space-constrained designs. For instance, when managing complex power requirements with a 10 layer PCB stackup, minimizing the use of through-hole vias is absolutely essential to preserve the structural and electrical integrity of solid, uninterrupted power and ground planes.

How to Implement Blind Vias in Your PCB Design

Strategic Steps for Designing with Blind Vias

Following these methodical steps ensures a reliable and highly manufacturable HDI PCB design utilizing blind via technology.

1. Determine Your Precise Stackup Strategy

Before you lay down a single trace, you must finalize your PCB stackup. Blind vias must originate from an outer layer and carefully terminate at a designated inner layer. It is vital to ensure that your chosen PCB manufacturer can handle the specific drill depths, laser drilling requirements, and aspect ratios you intend to use. If you are new to multi-layer routing, reviewing a step by step guide to designing a 4 layer PCB stackup can help solidify your understanding of internal routing channels and layer transitions before moving on to complex HDI configurations.
2. Select the Appropriate Via Dimensions

The aspect ratio—defined as the depth of the via hole compared to its diameter—for a blind via is heavily constrained by the copper plating process. A widely accepted rule of thumb in the industry is to maintain an aspect ratio of 1:1 or less. This ensures the chemical plating solutions can properly coat the inside of the via hole. Always work closely with your fabrication house early in the design process to confirm their specific manufacturing capabilities and tolerances.
3. Configure Your EDA Software Constraints

You must explicitly configure your Electronic Design Automation (EDA) tool to recognize and define the specific blind via spans you will be using. This prevents the software engine from constantly throwing incorrect Design Rule Check (DRC) errors during the layout phase. Make sure you also thoroughly define all related clearance rules, applying similar principles as when you learn how to determine PCB trace spacing to avoid electrical shorts in densely populated HDI areas.
4. Route with Maximum Density in Mind

Begin by strategically placing your highest-pin-count components, such as fine-pitch Ball Grid Arrays (BGAs). Use blind vias directly within the pads (via-in-pad) to elegantly escape their dense pin matrices. Once the signals are dropped to the appropriate inner layer, route them efficiently while taking full advantage of the newly preserved space on the opposing outer layer.

The Transformative Benefits of Blind Via Technology

The primary and most immediately apparent advantage of employing blind via technology is the massive, transformative increase in available board real estate. By completely freeing up segments of different layers, designers are empowered to achieve significantly shorter signal paths. These shorter paths inherently improve signal integrity and simultaneously reduce harmful electromagnetic interference (EMI). Furthermore, utilizing fewer through-hole vias mathematically translates to fewer impedance discontinuities along critical signal paths, which is an absolutely vital consideration for modern high-speed digital designs. While blind vias do undeniably add complexity and a premium cost to the bare board manufacturing process—typically requiring advanced sequential lamination cycles or precision laser drilling—the spatial trade-off is almost always necessary and well worth it for producing cutting-edge smart devices, wearable tech, and sophisticated medical instrumentation.

الأسئلة الشائعة

What is the main difference between a blind via and a buried via?

A blind via connects either the top or bottom outer layer to one or more internal layers and is therefore visible from exactly one side of the PCB. Conversely, a buried via solely connects two or more internal layers and is entirely encapsulated within the board’s core, meaning it is visible from neither the top nor the bottom exterior surfaces.

Do blind vias significantly increase the overall cost of PCB manufacturing?

Yes, incorporating blind vias will increase the manufacturing costs of your bare board. This is because creating them requires additional, complex fabrication steps such as precise laser drilling, controlled depth mechanical drilling, and multiple sequential lamination press cycles, compared to the simpler process of manufacturing standard through-hole boards.

When is the best time to use blind vias instead of standard through-hole vias?

You should opt for blind vias when your routing space is critically constrained, particularly in High Density Interconnect (HDI) boards or when you need to fan out signals from incredibly fine-pitch components like complex micro-BGAs. In these scenarios, standard through-hole vias would aggressively consume far too much space and completely block vital routing channels on adjacent inner layers.
