Printed Circuit Boards (PCBs) are the foundation of modern electronics. As designs become more complex, understanding how to properly route signals between layers is crucial. This is where PCB vias come in. In this comprehensive guide, we will explore everything you need to know about PCB vias, from basic concepts to advanced design techniques.
What is a PCB Via?
A PCB via is an electrical connection between different layers of a printed circuit board. It essentially consists of a small hole drilled through the board, which is then plated with copper to allow current to flow between the layers. Vias are essential for multi-layer boards, as they enable complex routing that would be impossible on a single plane.
When designing vias, it’s important to consider related aspects such as Selecting the Right PCB Hole Size for Through Hole Components, as the dimensions of your drill holes will directly impact the manufacturability and reliability of your vias.
Types of PCB Vias
There are several types of vias used in PCB design, each serving a specific purpose:
- Through-Hole Vias: These are the most common type of via. They go entirely through the board from the top layer to the bottom layer. They are robust and cost-effective but take up space on all layers of the board.
- Blind Vias: These connect an outer layer to one or more inner layers but do not go all the way through the board. They help save space on the opposite side of the board but are more expensive to manufacture.
- Buried Vias: These connect two or more inner layers and are completely hidden from the outside. They are used in highly complex designs where space is at an absolute premium.
- Microvias: These are very small vias typically used in High-Density Interconnect (HDI) boards. They usually span only one layer transition and are created using lasers.
How to Design the Perfect Via
Follow these steps to ensure your vias are designed for optimal performance and manufacturability.
Step 1: Determine the Via Type
Decide whether your design requires through-hole, blind, buried, or microvias based on your layer stackup and routing density. For instance, when Managing Complex Power Requirements with a 10 Layer PCB Stackup, you might need a combination of buried and through-hole vias to ensure proper power distribution.
Step 2: Calculate the Aspect Ratio
The aspect ratio is the ratio of the board thickness to the drilled hole diameter. Most manufacturers recommend an aspect ratio of 10:1 or lower for reliable plating.
Step 3: Define the Annular Ring
The annular ring is the copper pad area that surrounds the drilled hole. Ensuring an adequate annular ring is crucial. You can learn more about How to Design the Perfect PCB Annular Ring to Prevent Breakouts to guarantee a solid connection.
Step 4: Consider Pad Design
Ensure that the via pad is correctly sized for your manufacturing tolerances. Applying Essential PCB Pad Design Tips for Reliable SMT Assembly can help avoid issues like tombstoning or solder wicking during assembly.
Advanced Via Routing Strategies

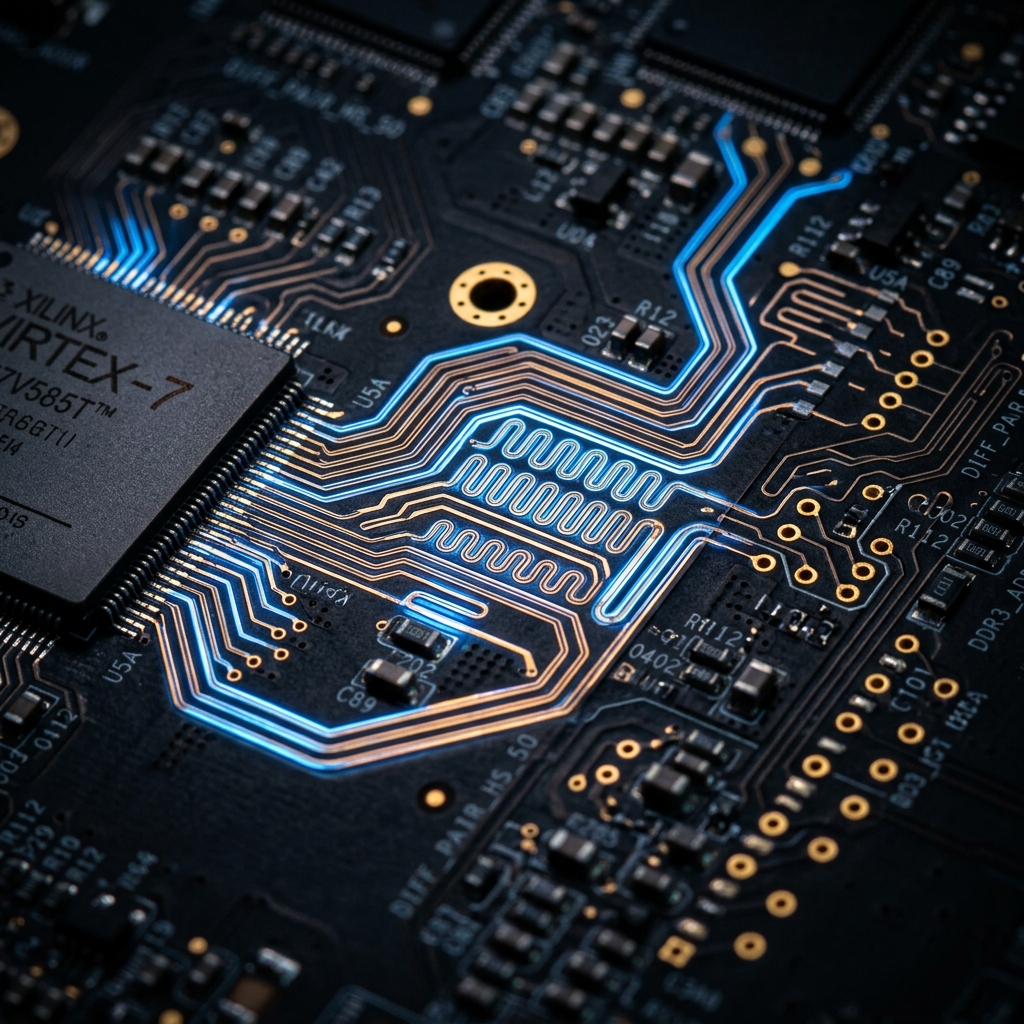

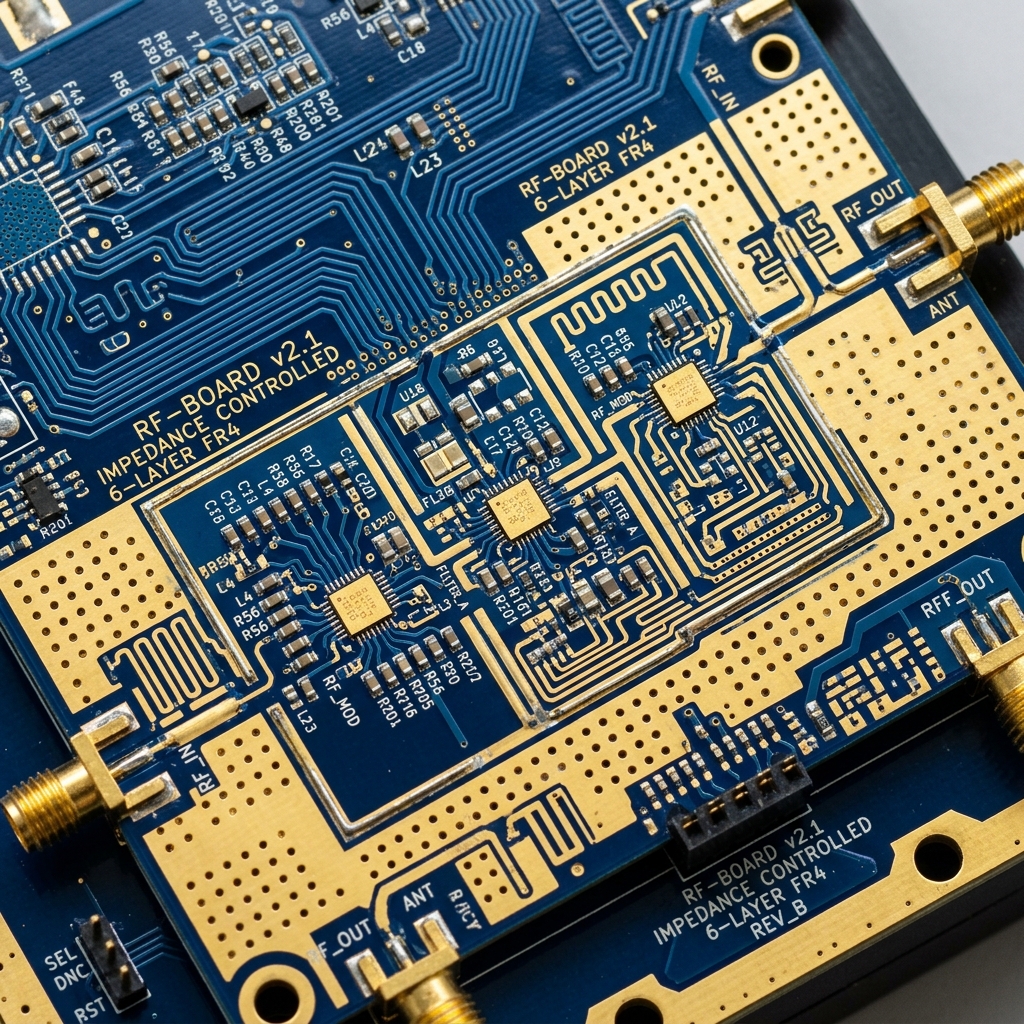

For high-speed or high-frequency designs, vias can act as impedance discontinuities, causing signal reflections. To mitigate this, advanced designers use techniques like via stitching and via shielding. Via stitching involves placing multiple vias around a high-power or high-frequency trace to provide a solid return path. Via shielding, on the other hand, surrounds a critical trace with ground vias to protect it from electromagnetic interference (EMI).
Frequently Asked Questions About PCB Vias
What is the difference between a via and a pad?
A pad is primarily designed for mounting and soldering electronic components to the board. A via is specifically designed to route electrical connections between different layers of the PCB. While a through-hole pad can function as a via, dedicated vias are usually smaller and not intended for component soldering.
Can vias be placed directly on component pads?
Placing vias directly on Surface Mount Technology (SMT) pads is known as “via-in-pad”. While it saves space, it can cause the solder to wick down into the via during reflow, leading to poor component connections. If via-in-pad is necessary, the vias should be filled and capped by the manufacturer.
How much current can a via carry?
The current-carrying capacity of a via depends on its diameter and the thickness of the copper plating. Designers use calculators based on IPC standards to determine the appropriate via size or the number of vias needed to carry a specific current without excessive heating.
Conclusion
Understanding PCB vias is fundamental to modern electronics design. Whether you are routing a simple two-layer board or a dense high-speed multi-layer stackup, mastering via selection, placement, and sizing will significantly improve the reliability and performance of your final product. Always communicate closely with your PCB manufacturer to understand their specific capabilities and tolerances regarding via fabrication.
